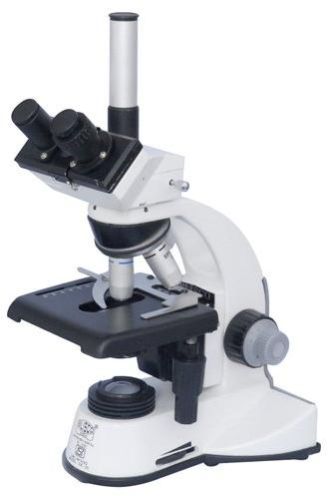

SM-SERIES Clinical Grade Pathological Trinocular Microscope

20 Piece (MOQ)

Edit

Business Type	Manufacturer, Exporter, Supplier, Importer
Country of Origin	India
Size	150mmx200mm, 200mmx250mm
Application	Forensic Lab, Science Lab
Click to view more

Preferred Buyer From

Location

Worldwide

Product Details

Feature

Actual View Quality, Contemporary Styling, Durable, Easy To Use, Good Griping, Power Angle View, Traditional Bushnell

Warranty

5yrs

Focus

0-2mm/Revolution, 2-4mmRevolution, 4-6mm/Revolution

Vision Angle

10-15Degree

Brand Name

BLISCO

Details

Viewing Head: Trinocular Inclined tube, 45°& Rotatable to 360°.
Eyepiece: Wide Field eyepiece WF 10x. Huygenian 5x or 15x (Anyone pair).
Nosepiece: Perfectly centered dust proof quadruple revolving nose piece.
Objective: DIN (long barrel) Achromatic colored corrected, Anti-fungal, Anti-bacterial multi-layered hard coated Para focal & Presenter 4 x, 10x, 40x SL and 100x SL Oil immersion objectives in unbreakable container.
Mechanical Stage: Horizontal low drive coaxial mechanical stage in extra large size (130mmx145mm) for X & Y movement 80-50mm on stainless steel balls of slides with ???ne venire graduations reading 0.1mm.
Focusing Movement: Separate Coarse & highly sensitive fine movement mechanical graduated to0.02mm. With locking device.
Condenser: Bright field condenser Abbe N.A. 1.25 & iris diaphragm with built in swing out filter holder with up-down.
Light Source: Illumination system LED 3.5W 3V with intensity control regulator. CE approved.
Supplied with: User manual, Vinyl Dust cover, cleaning cloth., Complete in Thermocol box, Complete in Thermocol & plywood cabinet.
