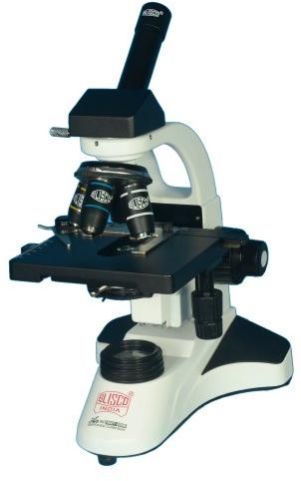

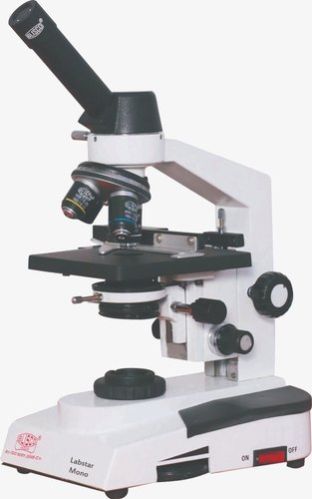

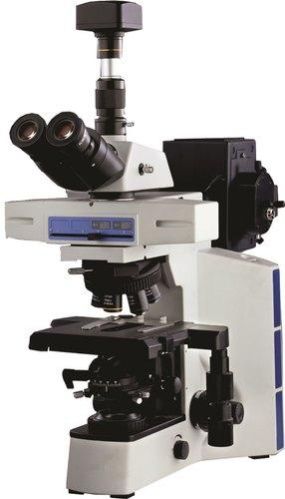

Leading Manufacturers, Exporters, Wholesaler and Importer of BLS-108 Medical Pathological Microscope, BLS-109 Medical Pathological Microscope, CXL-M Pathological Monocular Microscope, Economical Labstar-B Pathological Binocular Microscope, FL-500 Fluorescent Research Microscope With High End Camera, FL-600 Fluorescent Research Microscope With High End Camera, Labstar-M Monocular Inclined Microscope, Medi Lux Series Coaxial Pathological Monocular Microscope, Model BLS-111 Pathological Monocular Microscope, Model BLS-112 Pathological Monocular Microscope, Model BLS-113 Pathological Monocular Microscope, Model BLS-114 Pathological Monocular Microscope and Pathological Monocular Microscope with Coaxial Focusing from Ambala.
MECHANICAL STAGE RECTANGULAR: A large Low drive coaxial mechanical stage 140x120 mm for X & Y movement with Sub stage bright field condenser N.A. 1.25 & iris diaphragm with built in swing out filter holder and up-down movement through rack & pinion.
FOCUSING MECHANISM: Separate Coarse & highly sensitive fine movement mechanical graduated to0.02mm. With locking device.
ILLUMINATION: Heavy rectangular sturdy base with built in illumination 6V-20W Halogen Lamp or Cool Bright Light LED Lamp.
PACKING: Microscope supplied one Plano concave mirror for use in day light, duster, cover & instruction manual.
Viewing Head: Trinocular Inclined tube, 45°& Rotatable to 360°.
Eyepiece: Wide Field eyepiece WF 10x. Huygenian 5x or 15x (Anyone pair).
Nosepiece: Perfectly centered dust proof quadruple revolving nose piece.
Objective: DIN (long barrel) Achromatic colored corrected, Anti-fungal, Anti-bacterial multi-layered hard coated Para focal & Presenter 4 x, 10x, 40x SL and 100x SL Oil immersion objectives in unbreakable container.
Mechanical Stage: Horizontal low drive coaxial mechanical stage in extra large size (130mmx145mm) for X & Y movement 80-50mm on stainless steel balls of slides with ???ne venire graduations reading 0.1mm.
Focusing Movement: Separate Coarse & highly sensitive fine movement mechanical graduated to0.02mm. With locking device.
Condenser: Bright field condenser Abbe N.A. 1.25 & iris diaphragm with built in swing out filter holder with up-down.
Light Source: Illumination system LED 3.5W 3V with intensity control regulator. CE approved.
Supplied with: User manual, Vinyl Dust cover, cleaning cloth., Complete in Thermocol box, Complete in Thermocol & plywood cabinet.
Viewing Head: Trinocular Inclined tube, 45°& Rotatable to 360°.
Eyepiece: Wide Field eyepiece WF 10x. Huygenian 5x or 15x (Anyone pair).
Nosepiece: Perfectly centered dust proof quadruple revolving nose piece.
Objective: DIN (long barrel) Achromatic colored corrected, Anti-fungal, Anti-bacterial multi-layered hard coated Para focal & Presenter 4 x, 10x, 40x SL and 100x SL Oil immersion objectives in unbreakable container.
Mechanical Stage: Horizontal low drive coaxial mechanical stage in extra large size (130mmx145mm) for X & Y movement 80-50mm on stainless steel balls of slides with ???ne venire graduations reading 0.1mm.
Focusing Movement: Separate Coarse & highly sensitive fine movement mechanical graduated to0.02mm. With locking device.
Condenser: Bright field condenser Abbe N.A. 1.25 & iris diaphragm with built in swing out filter holder with up-down.
Light Source: Illumination system LED 3.5W 3V with intensity control regulator. CE approved.
Supplied with: User manual, Vinyl Dust cover, cleaning cloth., Complete in Thermocol box, Complete in Thermocol & plywood cabinet.
